Grundfos
In Stock — Boisar Desk
Digital Dosing Pumps

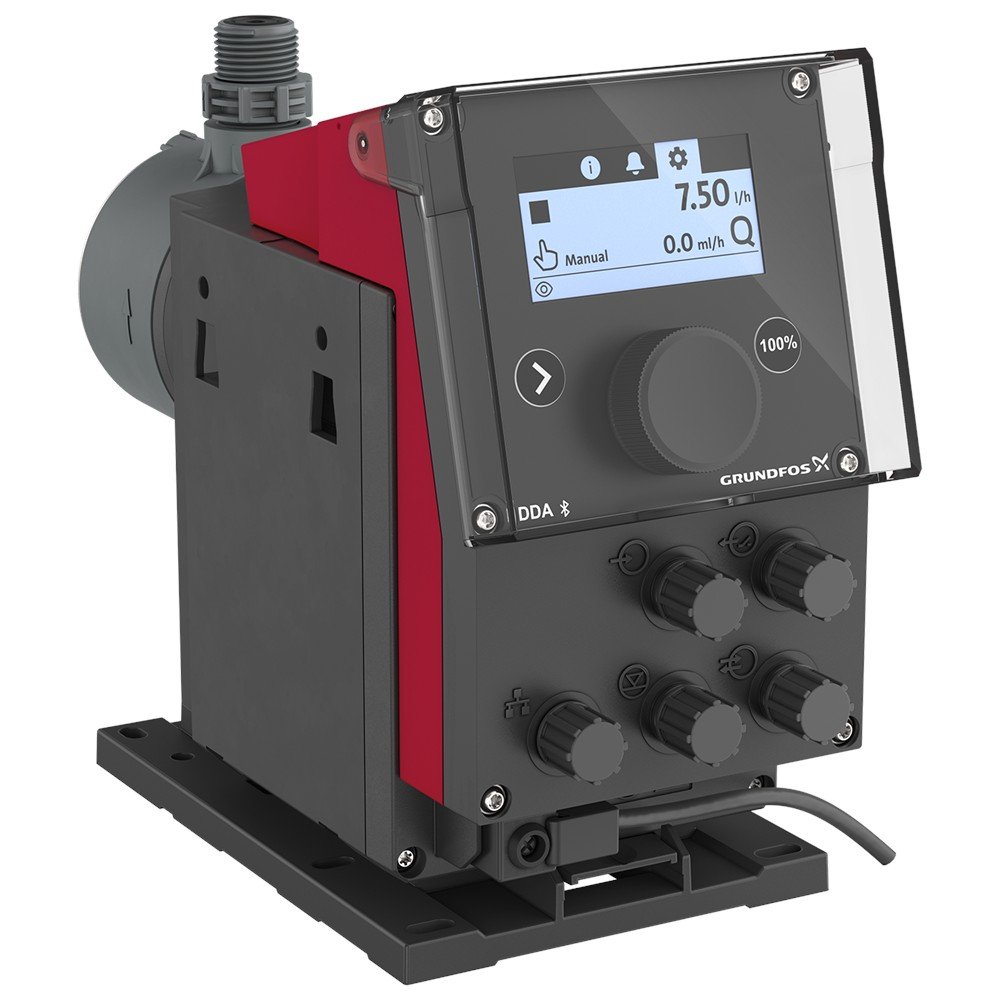

Grundfos DDA SMART Digital Dosing Pump
SKU: GF-DDA-SMART
Advanced SMART digital diaphragm dosing pump featuring internal brushless DC stepper motor, 1:3000 turn-down ratio, FlowControl diagnostics, and intuitive graphical user interface for ultra-precise chemical metering.
Rated Flow
200 l/h (0.002 – 200 l/h)
Rated Head
16 bar (160 m)
Motor Output
Variable-Speed Stepper Motor (BLDC)
Temperature
-10°C to +50°C
Max Pressure
16 bar (1.6 MPa)
Material MOC
PVDF / Polypropylene / AISI 316 SS
Engineering Technical Data
Target Industrial Applications & Duty Requirements
Water Treatment & Disinfection
Precision metering of sodium hypochlorite, chlorine dioxide, and biocides for municipal and industrial water disinfection.
Cooling Tower Chemical Conditioning
Continuous micro-dosing of scale inhibitors, corrosion inhibitors, and non-oxidizing biocides into recirculating cooling circuits.
CIP Chemical Metering
Smooth addition of acid and caustic cleaning chemicals with full PTFE diaphragm resilience against aggressive media.
Pharma WFI & Pure Process Chemistry
Ultra-wide 1:3000 turn-down ratio delivers pulse-free micro-liter dosing for high-precision pharmaceutical batch synthesis.
DKE : Engineering & Genuine Spares Support
Dattakrupa Enterprises maintains an inventory of authentic Grundfos HQQE mechanical shaft seal kits, O-ring gasket sets, and replacement pump impellers locally in Boisar. Our factory-trained field engineers provide on-site laser alignment, vibration baseline testing, and emergency seal replacement to ensure zero unbudgeted plant downtime across Boisar and Tarapur MIDC.
