Grundfos
In Stock — Boisar Desk
End-Suction Centrifugal Pumps

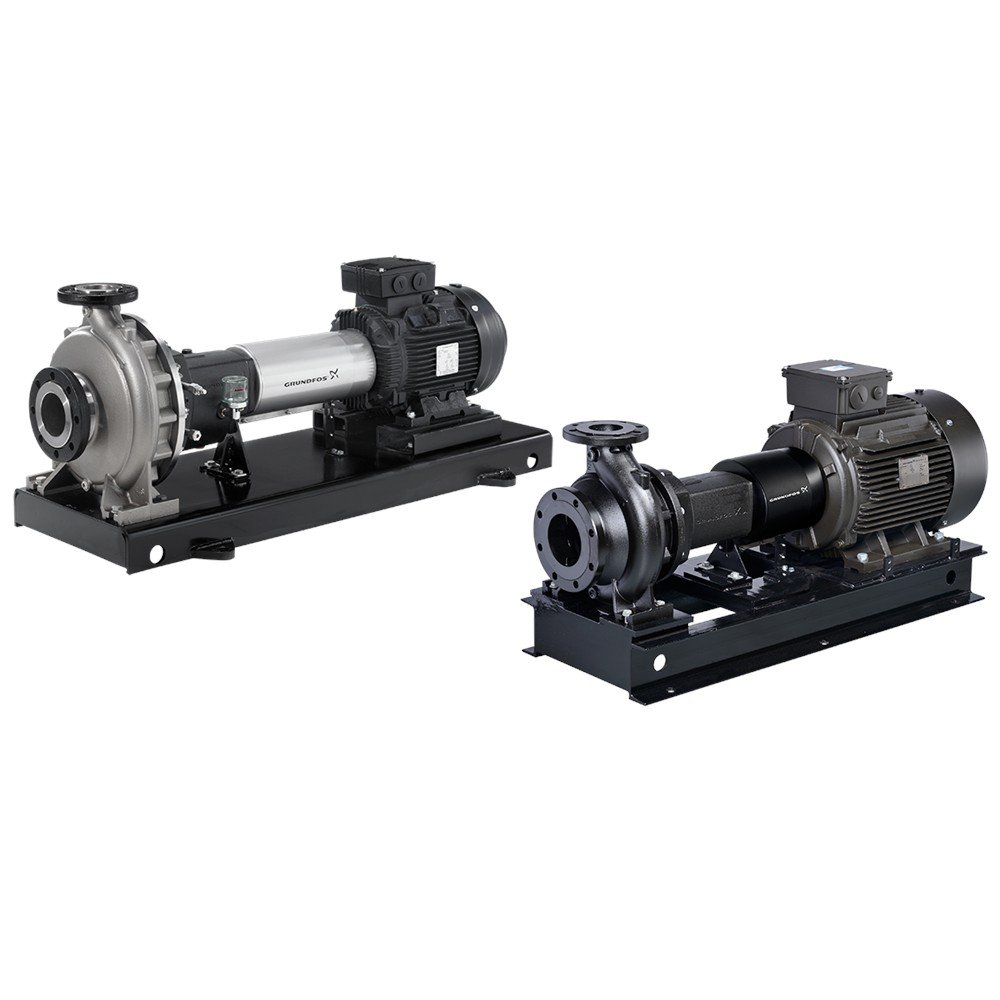

Grundfos NK Long-Coupled End-Suction Centrifugal Pump
SKU: GF-NK-SERIES
Heavy-duty single-stage centrifugal volute pump complying with EN 733 and ISO 2858. Long-coupled design on baseplate with back pull-out feature and spacer coupling for non-disruptive industrial servicing.
Rated Flow
725 m³/h (up to 1,000 m³/h)
Rated Head
31 m (up to 150 m)
Motor Output
11 kW – 355 kW (Foot-mounted IE3/IE4)
Temperature
-25°C to +140°C
Max Pressure
25 bar (2.5 MPa)
Material MOC
Cast Iron (EN-GJL-250) / Bronze / SS316
Engineering Technical Data
Target Industrial Applications & Duty Requirements
Industrial Condenser & Cooling Towers
Massive flow capacity up to 725 m³/h for forced/induced draft cooling towers in chemical plants and steel mills.
District Energy & Central Chiller Plants
Primary and secondary chilled water distribution for large campus HVAC headers and district cooling complexes.
Bulk Plant Water Intake & Transfer
Heavy-duty volute casing built for 24/7 continuous water abstraction from MIDC reservoirs into raw water tanks.
Heavy Process Liquid Handling
Robust ISO 2858 construction with spacer coupling allows rapid seal and impeller servicing with zero pipework disruption.
DKE : Engineering & Genuine Spares Support
Dattakrupa Enterprises maintains an inventory of authentic Grundfos HQQE mechanical shaft seal kits, O-ring gasket sets, and replacement pump impellers locally in Boisar. Our factory-trained field engineers provide on-site laser alignment, vibration baseline testing, and emergency seal replacement to ensure zero unbudgeted plant downtime across Boisar and Tarapur MIDC.
